Fully Automated HAST Chamber with Stainless Steel Construction for Highly Accelerated Stress Testing at 105-135ºC

  • 1
  • 2
  • 3

Certification : CE,ISO

MOQ : 1 Unit

Price : $599~$8999

Place of Origin : CHINA

Brand Name : YOUBI

Payment Terms : T/T; D/P; Wester Union; Paypal; Money Gram

Packaging Details : Professional Export Wooden Box Packaging

Supply Ability : 30 Unit/month

Model Number : UP-6124

Delivery Time : 5~15 work days

Product name : Highly accelerated stress test chamber

Model NO. : UP-6124

Warranty : 1 Year

Custom Service : OEM,ODM

Temperature Range : 105-135ºC

Pressure Range : Table Pressure 0.2~2.0kg/Cm2

Range Humidity : 75%~100%Rh

Temperature and Humidity Uniformity : ±0.5ºC/±5%Rh

Size Service : Support Customer Customization

Additional Service : Support Customer Customization

Specification : Refer to the actual size specifications

Color Service : Support Customer Customization

Contact Now

UP-6124 Fully Automated Professional HAST Chamber for Highly Accelerated Stress Testing of IC Packages
Product Overview
The HAST High Pressure Accelerated Aging Chamber evaluates operational reliability of non-gas-tight IC devices (solid-state devices) under high temperature and humidity conditions, performing high-accelerated stress life aging tests for components including non-biased chips and semiconductors.
Applications
  • IC Semiconductors
  • Connectors
  • Circuit Boards
  • Magnetic Materials
  • Polymer Materials
  • EVA and Photovoltaic Modules
Compliance Standards
IEC60068-2-66; JESD22-A102-C; JESD22-A110-B; JESD22-A118; GB/T 2423.40-1997
Technical Specifications
ITEM Specification
Model UP-6124
Humidity Range 75% ~ 100% RH
Temperature Range +105 °C ~ +132 °C
Humidity Fluctuation ≤ ±3% RH
Pressure Range 1.2 - 2.89 MPa
Time Range 0 ~ 999 minutes
Language Chinese / English
Operation Mode Manual or Programmable
Unit Dimensions (W*D*H) 900 * 700 * 1500 mm
Heating Time Ambient -> +132 °C: Approx. 110 minutes
Pressure Rise Time Atmospheric pressure -> 1.89 bar: Approx. 130 minutes
Temperature Uniformity ≤ ±0.5 °C

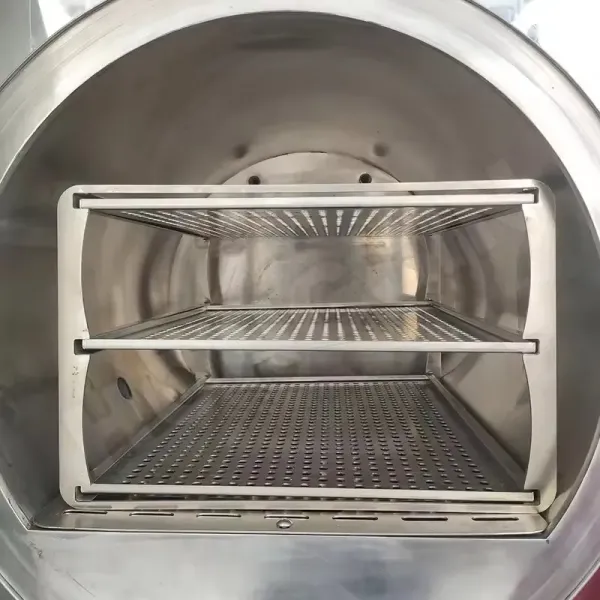

Outer Chamber Material Stainless steel or optional painting / baking finish
Inner Chamber Material Stainless steel (SUS #316)
Insulation Material Rock wool and rigid polyurethane foam
Ambient Temperature +5 °C to +35 °C
Ambient Humidity ≤ 85% RH
Power Supply AC220V, 1PH, 20A, 50Hz, Line + Neutral + Protective Earth
Fully Automated HAST Chamber with Stainless Steel Construction for Highly Accelerated Stress Testing at 105-135ºC Fully Automated HAST Chamber with Stainless Steel Construction for Highly Accelerated Stress Testing at 105-135ºC Fully Automated HAST Chamber with Stainless Steel Construction for Highly Accelerated Stress Testing at 105-135ºC Fully Automated HAST Chamber with Stainless Steel Construction for Highly Accelerated Stress Testing at 105-135ºC Fully Automated HAST Chamber with Stainless Steel Construction for Highly Accelerated Stress Testing at 105-135ºC
Our Service Commitment
Consultative Selling Approach
  • Customer Inquiry: Technical requirement discussions, product recommendations, and competitive pricing
  • Customization: Detailed drawings, reference photos, and final solution confirmation
  • Production & Delivery: Progress updates, factory calibration, quality testing, and timely shipping
  • Installation & Support: Field installation and comprehensive after-sales service
Frequently Asked Questions
Are you a Manufacturer? What about warranty and after-sales service?
Yes, we are professional manufacturers of Environmental Chambers and testing equipment. All machines include 12-month warranty with free maintenance. Extended 2-month coverage accounts for sea transportation. Technical support available via email, phone, or video chat with solutions provided within 24-48 hours.
What is the delivery timeframe?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special priority scheduling.
Do you offer customization and OEM services?
Yes, we provide both standard and customized machines according to specific requirements, including OEM and ODM services with customer logo application.
How do I install and operate the equipment?
We provide comprehensive English operation manuals and videos. Most machines ship fully assembled - simply connect power and begin operation. On-site installation assistance available when necessary.
