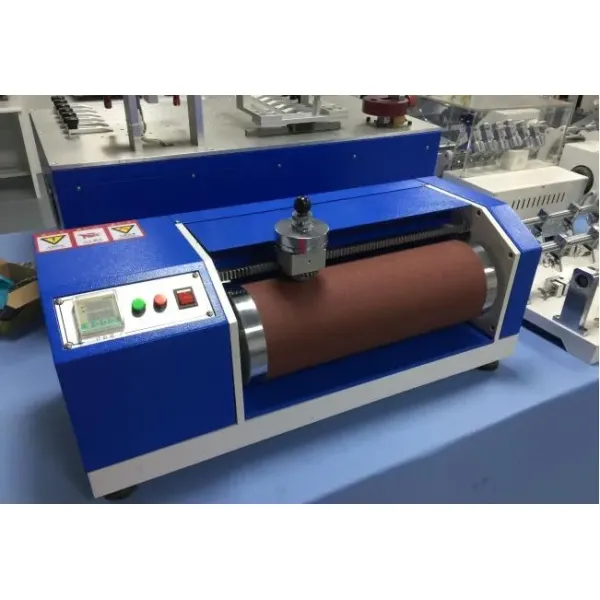

DIN-53516 Electronic Plastic DIN Abrasion Tester BS 903 for Soft Synthetic Leather
The Flexible Material DIN Abrasion Resistance Tester is designed for testing elastic materials, rubber, tires, conveyor belts, transmission belts, soles, soft leather, and synthetic leather. This equipment offers high efficiency, excellent reproducibility, and easy operation for abrasion testing.
Design Standards
- DIN-53516
- ISO-4649
- GB/T9867
Technical Parameters
| Parameter |
Specification |
| Specimen |
φ16mm, 6~15mm (D) |
| Fixture Load |
2.5N |
| Weight Load |
2.5N, 5N |
| Fixture Lateral Displacement |
4.2 ± 0.04mm / wheel every lap |
| Roller Length |
460mm |
| Roll Diameter |
150mm |
| Rolling Speed |
40rpm |
| Abrasion Speed |
0.32m/sec |
| Volume |
95×66×31cm |
| Weight |
50kg |
| Power |
220V 50HZ |
Our Service
Customer Inquiry Process
We discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing based on customer specifications.
Specifications Customization Process
We create detailed drawings and provide reference photos for customized requirements, confirming final solutions and pricing with customers.
Production and Delivery Process
We manufacture according to confirmed requirements, provide production progress photos, conduct factory or third-party calibration, and ensure proper packaging and timely delivery.
Installation and After-Sales Service
We provide field installation support and comprehensive after-sales service to ensure optimal equipment performance.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with free maintenance during this period. For technical issues, contact us via email or phone for prompt resolution within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. We accommodate urgent requirements with special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including logo placement on equipment.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin operation. On-site installation assistance is available when necessary.
