Xenon Aging Test Chamber with Xenon Long-Arc Lamp for Accelerated Weathering Testing -70°C~100°C and 30~98%RH

  • 1
  • 2

Certification : CE,ISO

MOQ : 1 Unit

Price : Negotiable

Product name : Xenon aging test chamber

Warranty : 1 Year

Custom Service : OEM,ODM

Temperature Control : Pid Self-Tuning Temperature Control Mode

Xenon Lamp Light : Xenon Long-Arc Lamp, 6kw±10%, 290-800nm, 10

Temperature Range : -70°C~100c

Humidity Range : 30~98%Rh

Temperature Uniformity : ± 2°C

Humidity Uniformity : ± 3%Rh

Specification : Refer to the actual size specifications

Brand Name : YOUBI

Model Number : UP-6117

Place of Origin : CHINA

Payment Terms : T/T,D/P,Western Union,Paypal,

Supply Ability : 30 Unit/month

Delivery Time : 5-15 work days

Packaging Details : Professional Export Wooden Box Packaging

Contact Now

UP-6117 Automotive Materials Environmental Xenon Arc Lamp Accelerated Climate Testing Chamber
Product Overview

Xenon Accelerated Testing Chamber is designed to test products undergoing illumination, rain, condensation, temperature, humidity, wind, and other climatic changes. This aging tester is primarily used for testing non-ferrous metals, organic materials, rubber, plastics, and building materials. It provides essential data for evaluating product properties and performance to improve product quality.

Technical Specifications
Model UP-6117
Inner Box Size (D×W×H) 600*750*500mm
Outside Dimension (D×W×H) 1100*1250*1750mm
Temperature and Humidity Range -70°C~100°C; 30~98%RH
Temperature and Humidity Uniformity ±2°C; ±3%RH
Rainfall Time 1~9999min, adjustable
Rainfall Cycle 1~240min, interval adjustable
Xenon Lamp Light Xenon long-arc lamp, 6KW±10%, 290-800nm, 1000W/m²±200
Heating/Humidifying Power 2.0KW/2.0KW
Sample Spinning Machine Speed 1~5r/min (adjustable)
Sample and Xenon Lamp Distance 300~375mm
Box Material Stainless Steel SUS304#/Cold-rolled steel with spray
Circulation System Single cycle, centrifugal fan
Control and Cooling System Germany KLOCKNER-MOELLER programmable controller
Gas Processing Discharger for bad smell and harmful gas
Power AC380V, three phase five wire, 10KW
Use Environment 5°C~+30°C, ≤85%R.H
Standard Features
  • Filtering screen viewing window
  • Moistureproof lamp
Security Protection
  • Security device for circuit break
  • High pressure of the compressor
  • High temperature alarm
Product Images

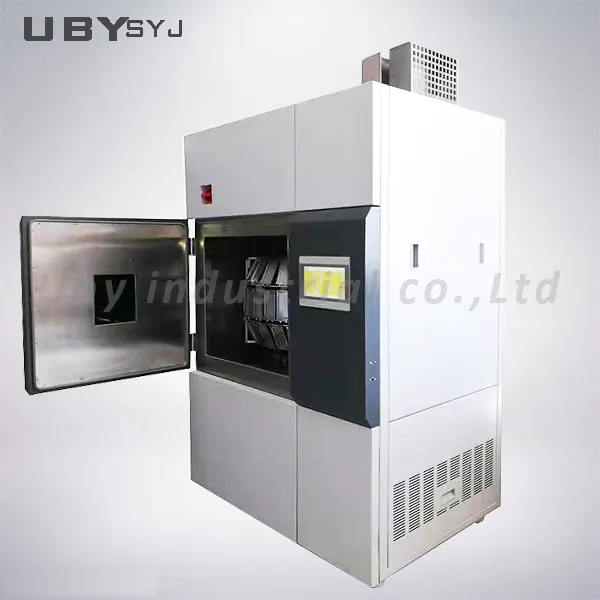

Xenon Aging Test Chamber with Xenon Long-Arc Lamp for Accelerated Weathering Testing -70°C~100°C and 30~98%RH
Xenon Aging Test Chamber with Xenon Long-Arc Lamp for Accelerated Weathering Testing -70°C~100°C and 30~98%RH
Xenon Aging Test Chamber with Xenon Long-Arc Lamp for Accelerated Weathering Testing -70°C~100°C and 30~98%RH
Our Service Process
  • Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide pricing according to customer requirements.
  • Specifications Customize Process: Create drawings for customized requirements, provide reference photos, confirm final solution and pricing.
  • Production and Delivery Process: Manufacture according to confirmed PO requirements, provide production photos, conduct factory or third-party calibration, arrange packing and delivery.
  • Installation and After-Sale Service: Provide field installation and comprehensive after-sales support.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months for FREE maintenance, with an additional 2 months extension considering sea transportation. If your machine doesn't work, contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.

What about the delivery term?

For standard machines in stock: 3-7 working days. For non-stock items: 15-20 working days after payment is received. Special arrangements can be made for urgent requirements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the machine.

How can I install and use the machine?

We provide English operation manuals or videos via email. Most machines are shipped fully assembled - you only need to connect the power cable to start using them. If necessary, we can assist with on-site installation.
